Location Message
From syxUI — written for both platforms, not translated between them.

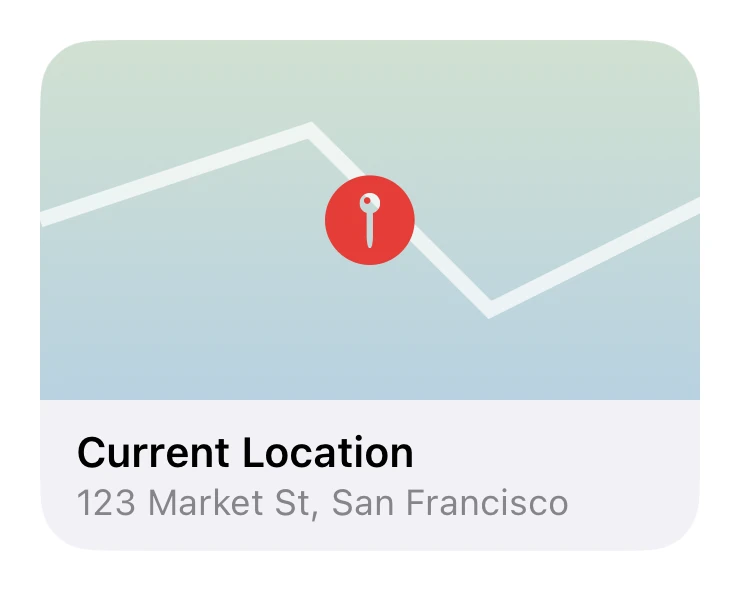

A shared-location message with a map snapshot and address.
Chat · SwiftUI · iOS 17
- chat
- swiftui
The actual source
ChatLocationMessage.swift
// Location Message · syxUI · https://syxui.dev/components/chat-location
// Free in any project. Keep this line and credit syxUI where a person can read it.
import SwiftUI
// Location message
struct ChatLocationMessage: View {
var body: some View {
HStack {
Spacer(minLength: 40)
VStack(alignment: .leading, spacing: 0) {
ZStack {
LinearGradient(colors: [Color(red: 0.82, green: 0.88, blue: 0.82), Color(red: 0.72, green: 0.82, blue: 0.88)], startPoint: .top, endPoint: .bottom)
Path { p in
p.move(to: CGPoint(x: 0, y: 60)); p.addLine(to: CGPoint(x: 90, y: 30))
p.addLine(to: CGPoint(x: 150, y: 90)); p.addLine(to: CGPoint(x: 230, y: 50))
}.stroke(.white.opacity(0.7), lineWidth: 5)
Image(systemName: "mappin.circle.fill").font(.system(size: 30)).foregroundStyle(Color(red: 0.9, green: 0.24, blue: 0.22))
}
.frame(width: 220, height: 120)
VStack(alignment: .leading, spacing: 1) {
Text("Current Location").font(.system(size: 14, weight: .semibold))
Text("123 Market St, San Francisco").font(.system(size: 12)).foregroundStyle(.secondary)
}
.padding(.horizontal, 12).padding(.vertical, 9).frame(width: 220, alignment: .leading)
}
.background(Color(.systemGray6)).clipShape(RoundedRectangle(cornerRadius: 18, style: .continuous))
}
}
}
iOS 17 · No dependencies
Dependencies
- SwiftUI
- No external dependencies
Requires iOS 17
