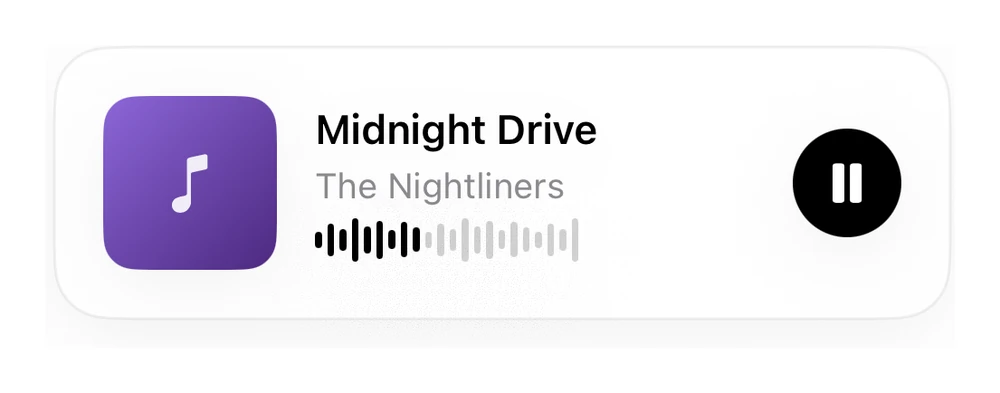

Audio Player preview
Rendered from the SwiftUI source on this page.

Audio Player

From syxUI — written for both platforms, not translated between them.

A self-contained audio player component — SwiftUI, gradient placeholders, no image assets needed.

Cards · SwiftUI · iOS 17

  • cards
  • swiftui

The actual source

AudioPlayerCard.swift
// Audio Player · syxUI · https://syxui.dev/components/media-audio
// Free in any project. Keep this line and credit syxUI where a person can read it.

import SwiftUI

func mediaGradient(_ i: Int) -> LinearGradient {
    let pairs: [(Color, Color)] = [
        (Color(red: 0.98, green: 0.42, blue: 0.36), Color(red: 0.85, green: 0.18, blue: 0.22)),
        (Color(red: 0.36, green: 0.42, blue: 0.9), Color(red: 0.16, green: 0.18, blue: 0.42)),
        (Color(red: 0.2, green: 0.6, blue: 0.45), Color(red: 0.08, green: 0.3, blue: 0.24)),
        (Color(red: 0.55, green: 0.4, blue: 0.85), Color(red: 0.3, green: 0.16, blue: 0.5)),
    ]
    let p = pairs[i % pairs.count]
    return LinearGradient(colors: [p.0, p.1], startPoint: .topLeading, endPoint: .bottomTrailing)
}

extension View {
    func formaCard(_ pad: CGFloat = 18) -> some View {
        self.padding(pad)
            .background(Color(.systemBackground), in: RoundedRectangle(cornerRadius: 20, style: .continuous))
            .overlay(RoundedRectangle(cornerRadius: 20, style: .continuous).stroke(Color.primary.opacity(0.06), lineWidth: 1))
            .shadow(color: .black.opacity(0.05), radius: 14, x: 0, y: 6)
    }
}

// Audio player
struct AudioPlayerCard: View {
    var body: some View {
        HStack(spacing: 14) {
            RoundedRectangle(cornerRadius: 12, style: .continuous).fill(mediaGradient(3)).frame(width: 64, height: 64)
                .overlay(Image(systemName: "music.note").font(.system(size: 22)).foregroundStyle(.white.opacity(0.9)))
            VStack(alignment: .leading, spacing: 4) {
                Text("Midnight Drive").font(.system(size: 15, weight: .semibold))
                Text("The Nightliners").font(.system(size: 13)).foregroundStyle(.secondary)
                HStack(spacing: 2) {
                    ForEach(0..<22, id: \.self) { i in
                        Capsule().fill(i < 9 ? Color.primary : Color.primary.opacity(0.18))
                            .frame(width: 2.5, height: [6.0, 12, 8, 16, 10, 14, 7, 13, 9].map { CGFloat($0) }[i % 9])
                    }
                }
            }
            Spacer()
            Image(systemName: "pause.fill").font(.system(size: 18)).foregroundStyle(Color(.systemBackground))
                .frame(width: 40, height: 40).background(Color.primary, in: Circle())
        }.formaCard()
    }
}
iOS 17 · 1 dependencies

Dependencies

SwiftUI
  • mediaGradient

Requires iOS 17
