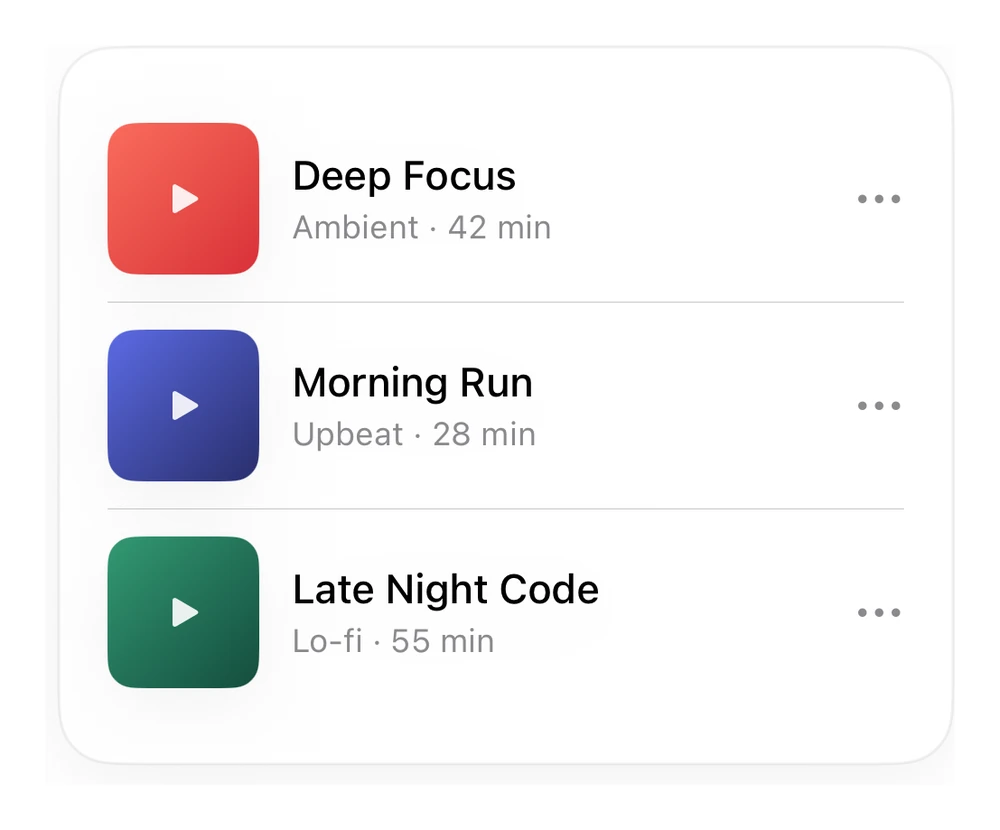

Media List preview
Rendered from the SwiftUI source on this page.

Media List

From syxUI — written for both platforms, not translated between them.

A self-contained media list component — SwiftUI, gradient placeholders, no image assets needed.

Cards · SwiftUI · iOS 17

  • cards
  • swiftui

The actual source

MediaListRowCard.swift
// Media List · syxUI · https://syxui.dev/components/media-list-row
// Free in any project. Keep this line and credit syxUI where a person can read it.

import SwiftUI

func mediaGradient(_ i: Int) -> LinearGradient {
    let pairs: [(Color, Color)] = [
        (Color(red: 0.98, green: 0.42, blue: 0.36), Color(red: 0.85, green: 0.18, blue: 0.22)),
        (Color(red: 0.36, green: 0.42, blue: 0.9), Color(red: 0.16, green: 0.18, blue: 0.42)),
        (Color(red: 0.2, green: 0.6, blue: 0.45), Color(red: 0.08, green: 0.3, blue: 0.24)),
        (Color(red: 0.55, green: 0.4, blue: 0.85), Color(red: 0.3, green: 0.16, blue: 0.5)),
    ]
    let p = pairs[i % pairs.count]
    return LinearGradient(colors: [p.0, p.1], startPoint: .topLeading, endPoint: .bottomTrailing)
}

extension View {
    func formaCard(_ pad: CGFloat = 18) -> some View {
        self.padding(pad)
            .background(Color(.systemBackground), in: RoundedRectangle(cornerRadius: 20, style: .continuous))
            .overlay(RoundedRectangle(cornerRadius: 20, style: .continuous).stroke(Color.primary.opacity(0.06), lineWidth: 1))
            .shadow(color: .black.opacity(0.05), radius: 14, x: 0, y: 6)
    }
}

// Media list row
struct MediaListRowCard: View {
    var body: some View {
        VStack(spacing: 0) {
            ForEach(0..<3, id: \.self) { i in
                HStack(spacing: 12) {
                    RoundedRectangle(cornerRadius: 10, style: .continuous).fill(mediaGradient(i)).frame(width: 56, height: 56)
                        .overlay(Image(systemName: "play.fill").font(.system(size: 13)).foregroundStyle(.white.opacity(0.9)))
                    VStack(alignment: .leading, spacing: 3) {
                        Text(["Deep Focus", "Morning Run", "Late Night Code"][i]).font(.system(size: 15, weight: .medium))
                        Text(["Ambient · 42 min", "Upbeat · 28 min", "Lo-fi · 55 min"][i]).font(.system(size: 12)).foregroundStyle(.secondary)
                    }
                    Spacer()
                    Image(systemName: "ellipsis").foregroundStyle(.secondary)
                }.padding(.vertical, 10)
                if i < 2 { Divider() }
            }
        }.formaCard()
    }
}
iOS 17 · 1 dependencies

Dependencies

SwiftUI
  • mediaGradient

Requires iOS 17
