Up-Next Queue
From syxUI — written for both platforms, not translated between them.

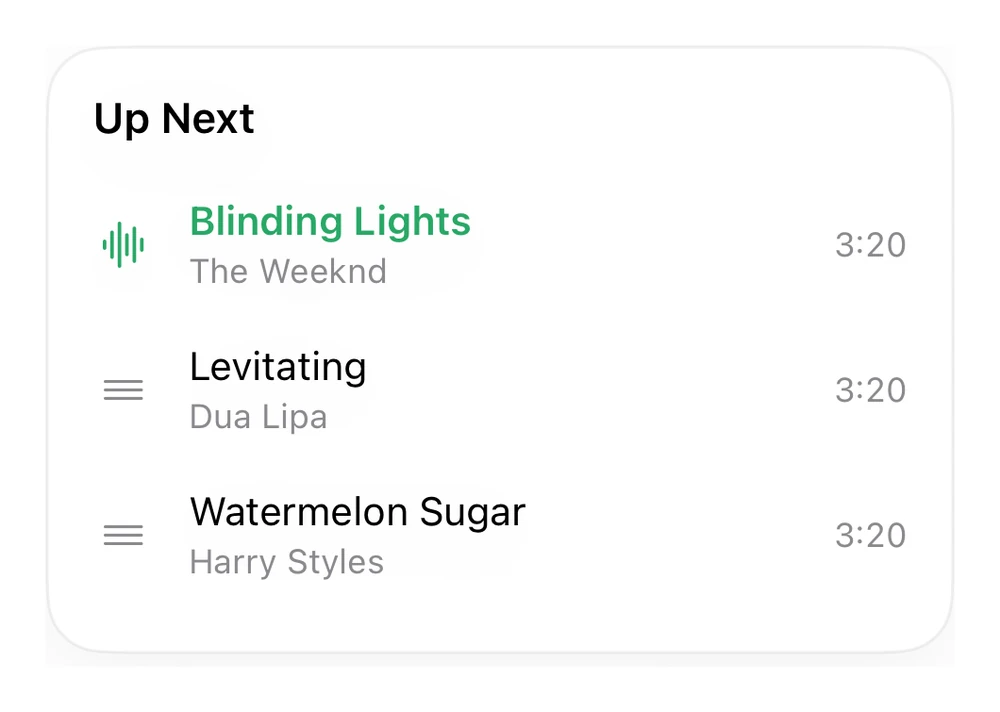

A play queue with the current track highlighted.
Cards · SwiftUI · iOS 17
- cards
- swiftui
The actual source
QueueList.swift
// Up-Next Queue · syxUI · https://syxui.dev/components/media2-queue
// Free in any project. Keep this line and credit syxUI where a person can read it.
import SwiftUI
let medGreen = Color(red: 0.16, green: 0.66, blue: 0.40)
extension View {
func formaCard(_ pad: CGFloat = 18) -> some View {
self.padding(pad)
.background(Color(.systemBackground), in: RoundedRectangle(cornerRadius: 20, style: .continuous))
.overlay(RoundedRectangle(cornerRadius: 20, style: .continuous).stroke(Color.primary.opacity(0.06), lineWidth: 1))
.shadow(color: .black.opacity(0.05), radius: 14, x: 0, y: 6)
}
}
// Up-next queue
struct QueueList: View {
let songs = [("Blinding Lights", "The Weeknd", true), ("Levitating", "Dua Lipa", false), ("Watermelon Sugar", "Harry Styles", false)]
var body: some View {
VStack(alignment: .leading, spacing: 0) {
Text("Up Next").font(.system(size: 15, weight: .semibold)).padding(.bottom, 10)
ForEach(Array(songs.enumerated()), id: \.offset) { i, s in
HStack(spacing: 12) {
if s.2 { Image(systemName: "waveform").font(.system(size: 16)).foregroundStyle(medGreen).frame(width: 22) } else { Image(systemName: "line.3.horizontal").font(.system(size: 14)).foregroundStyle(.secondary).frame(width: 22) }
VStack(alignment: .leading, spacing: 2) { Text(s.0).font(.system(size: 14, weight: s.2 ? .semibold : .regular)).foregroundStyle(s.2 ? medGreen : Color.primary); Text(s.1).font(.system(size: 12)).foregroundStyle(.secondary) }
Spacer()
Text("3:20").font(.system(size: 12)).foregroundStyle(.secondary)
}.padding(.vertical, 9)
}
}.formaCard(16).frame(width: 320)
}
}
iOS 17 · No dependencies
Dependencies
- SwiftUI
- No external dependencies
Requires iOS 17
